SVS PB-3000 leverer et massivt basstrykk som slår i brystkassen og setter en ny standard for ytelse i sin prisklasse. Med et helt nyutviklet 13" basselement og den nye STA-800D2 forsterkeren leverer PB-3000 en bass som virkelig får kontakt med rommet og setter luften i bevegelse.
13" basselement
800 watt RMS, 2500 watt peak effekt
DSP App for personlige innstillinger
Kabinett med bassrefleksporter
Ny Sledge forsterker
Den nye Sledge STA-800D2 er konservativt oppgitt til å yte 800 watt RMS, 2500 watt peak effekt og har full kontroll på basselementet. Den innovative konstruksjonen kombinerer effektiviteten til en klasse-D forsterker med et fullt diskret MOSFET utgangstrinn som tillater forsterkeren å levere enorme mengder strøm.
Klasse D forsterkeren kombinert med den fullt diskrete MOSFET utgangen evner å levere massive mengder strøm som gir ekstrem kontroll på elementet
Sofistikert DPS fra Analog Devices gir subwooferen pin-point presisjon gjennom avansert romtuning, optimalisert frekvensrespons og kraftige DSP kontroller
Nytt 13" basselement
SVS beskriver sitt nye 13" basselement som en jernhånd i en silkehanske. Ved å benytte en spolevikling som er forsterket i hver ende av spolen forbedres ytelsen drastisk når man presser elementet til å spille høyt samtidig som man oppnår å redusere vekten på spolen. Dette resulterer i et mer effektivt element som kan starte og stoppe kontant.
Doble ferritt magneter på nesten 12 kg produserer et kraftig magnetfelt som har full kontroll på det 13" store elementet
Membranen er lett og stiv med en støvhette i glassfiber som gir svært presis frekvensrespons
Den formstøpte pakningen sikrer elementet svært lang slaglengde

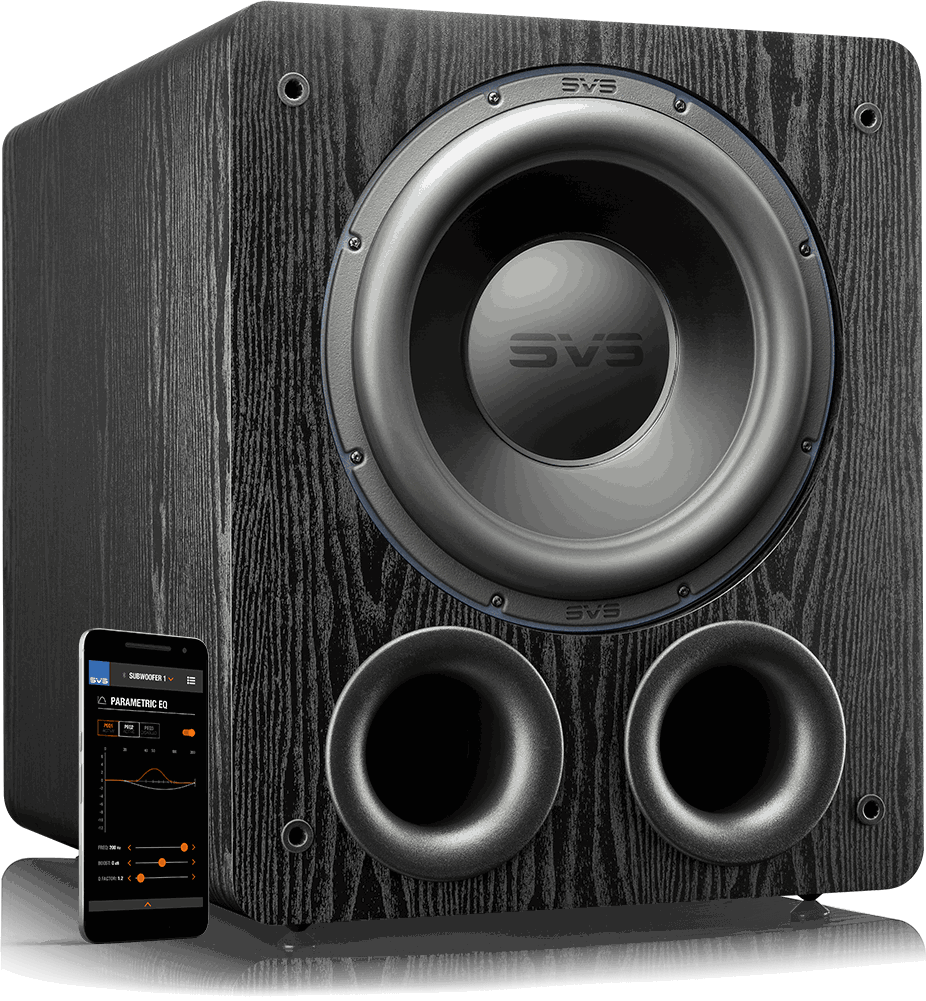

Full kontroll med app
Med DSP appen fra SVS har du full kontroll på funksjoner som volum, parametrisk EQ, delefilter, polaritet, romforsterkning, tilpassede forhåndsinnstillinger og system innstillinger.
Bluetooth tilkoblingen gir enkel kontroll selv om subwooferen gjemmes bort
Parametrisk EQ gir presise justeringsmuligheter av frekvenskurve
Kan lagre 3 forhåndsinnstillinger for film, musikk og annet
2-veis kommunikasjon gir realtime oppdatering i app og subwooferens display
Robust kabinett
Frontbaffelens doble MDF-plate og kabinettets interne avstivere er optimert for at kabinettet skal være så dødt for resonanser som mulig for at elementet skal kunne gjengi dypbassen uten forvrengning og farging.
Tech Info
Frequency Response / Acoustic Data
16-270Hz ± 3 dB (med åpne porter)
18-270Hz ± 3 dB (med forseglede porter)
Roll-off slope specifically optimized to take maximum advantage of available room gain
2-meter ground plane away from reflective structures (quasi-anechoic)
Subwoofer Specs:
Premium Black Ash and Piano Gloss Black finish options
Protective non-resonant steel mesh grille

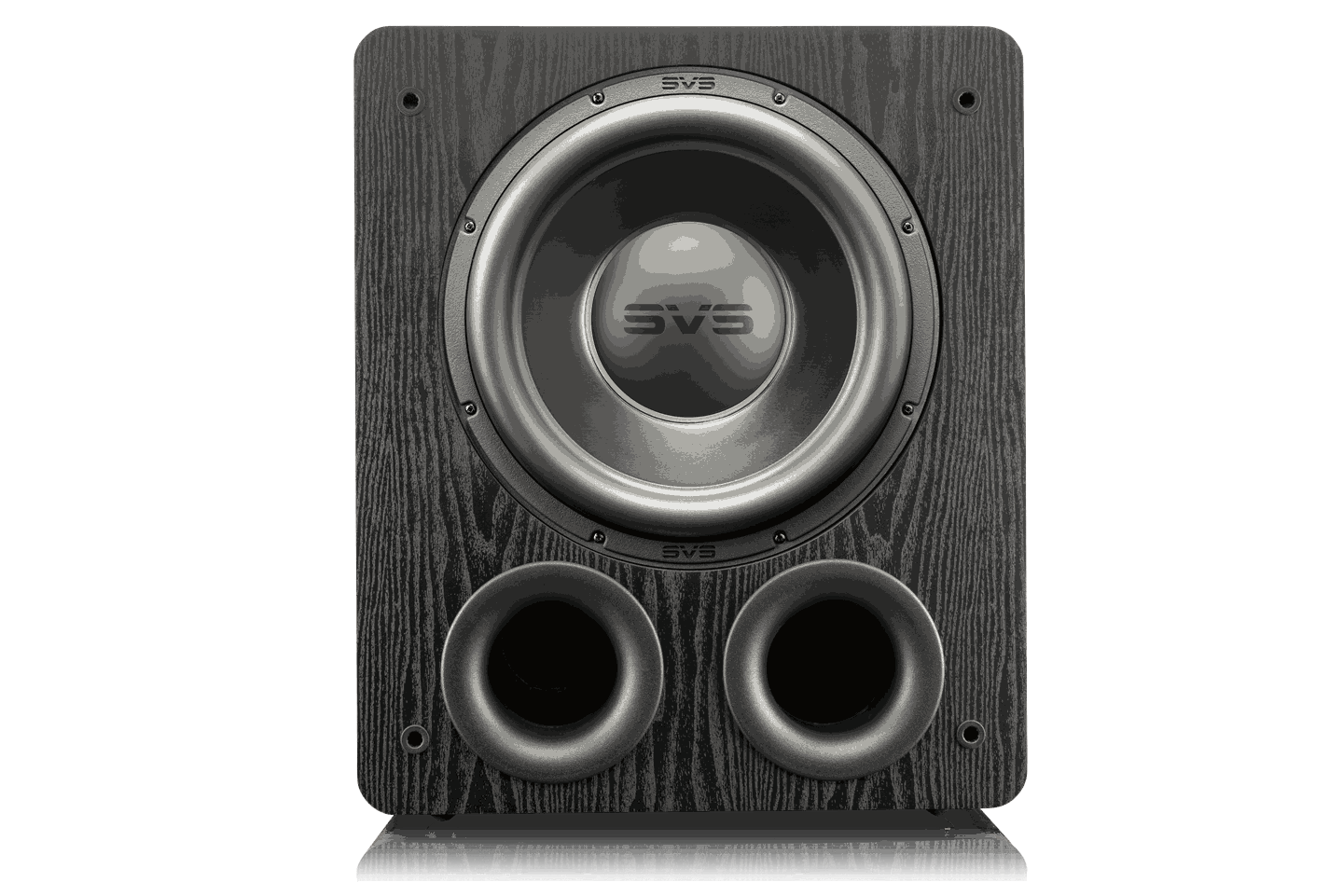

Front-firing 13 inch high-excursion SVS driver
Rear-mounted amplifier with Intelligent Control Interface(ICI)
Screw-in rubber feet
Robust Medium Density Fiberboard (MDF) cabinet construction
Dimensions (w/ grille): 557mm H X 465mm W X 660mm D
Dimensions (without grille): 557mm H X 465mm W X 596mm D
Shipped Dimensions: 795mm H X 587mm W X 674mm D
Weight (unboxed): 37.3 kg
Shipped Weight: 44 kg
Driver Specs:
All New Proprietary 13” high-excursion SVS 3000 Series Subwoofer Driver.
SVS first flat edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency. Built around a premium grade 2” polyimide impregnated fiberglass former for maximum thermal conductivity.
Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
Four balanced 24-strand silver plated Litz wire high temperature leads woven through the 6.5” 2-ply Nomex composite spider provide a pristine electrical connection from the amplifier to the voice coil.
All new 13” 1050 Aluminum vented cone ensures a light, rigid, and neutral radiating surface.
Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic linearity.
Nickle-plated high-tension spring terminals.
Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control.
Amplifier Specs:
Massively powerful Sledge 800-watt continuous Class D design with 2,500+ watts of Peak Power.
High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well beyond reference listening levels.
High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is the most advanced subwoofer processor available for perfect audio reproduction.
Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three parametric EQs for absolute best alignment with speakers and optimized performance in any room.
Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning for every room and system.
RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.

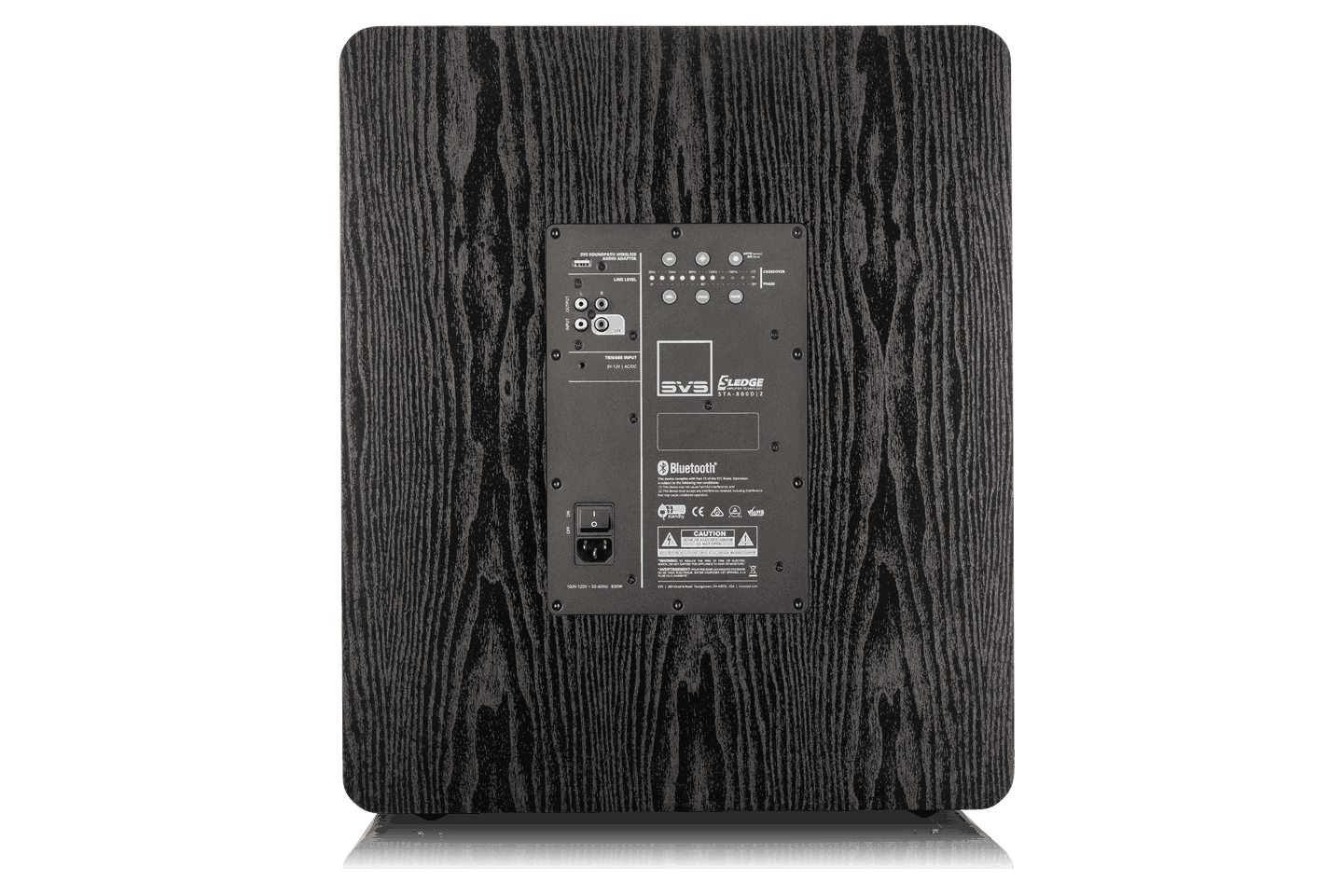

All new rear panel Intelligent Control Interface (ICI) user interface with bright back-lit controls.
Auto/On and 3-30V AC/DC trigger for Maximum Installation Convenience.
Input impedance 16kohm (unbalanced RCA).
Green 0.5-watt low standby power consumption.
RoHS compliant, lead-free construction, world-wide safety certifications.
SVS App Specs:
The most powerful and flexible Bluetooth controlled subwoofer DSP app, works with both iOS and Android operating systems.
Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
Single tap adjustment for controlling variable port tuning with standard, extended and sealed modes.
Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
Easy-to-follow tutorial provides clear guidance for all functions.
Included Accessories:
Protective non-resonant steel mesh grille
Iso-elastomer feet included
Extra heavy-duty, high current 6' power cord
PB-3000 Subwoofer Manual
Quick Start Guide
